0-379-65 Red Male PAL Short Leg Automotive Fuse 50A

£4.90  Excl. VAT
  (£5.88 Inc. VAT)
RRP:  £5.50  Excl. VAT
Initial Savings:  £0.60
Earn 4 Loyalty Points
Available


Weight:  10 g





Model:  0-379-65
Bar Code:  5056119111217
Part Number:  0-379-65
Brand:  Durite
Colour:  Red
Voltage:  12V/24V DC
Amperage:  50A
Material:  Thermoplastic/Copper

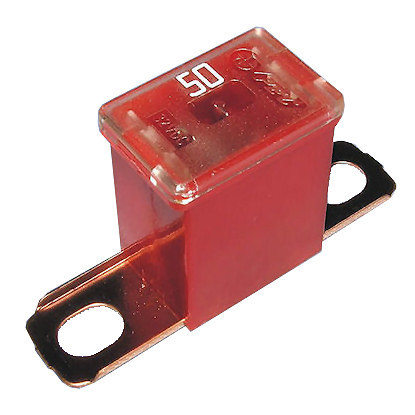

 Durite red short-legged 50 Amps PAL type automotive cartridge fuse.

  • Type: Bolt down short leg cartridge fuse.
  • Colour Coded: Red.
  • Voltage rating: 32Vdc Maximum.
  • Continuous Rating 50A.
  • Blow Rating 100A.
  • Pack Quantity: 1 piece.

Dimensions

  • Length including legs: 48mm.
  • Body depth: 15mm.
  • Body length: 20mm.
  • Body height: 21mm.
  • Hole centres: 37mm.

About The Red 50A Bolt Down Cartridge Fuse

 Durite replacement red 50 Amps short leg bolt down fuses are for vehicle fuseboxes and panels and are used to replace a blown fuse position or to add to a vehicles breakdown kit.

 The ratings for 50A continuous use is based on a circuit constant load being always-on, the 100A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
