0-379-33 Pink Female JCASE Cartridge Automotive Fuse 30A

£3.04  Excl. VAT
  (£3.65 Inc. VAT)
RRP:  £3.42  Excl. VAT
Initial Savings:  £0.38
Earn 3 Loyalty Points
Available


Weight:  10 g





Model:  0-379-33
Bar Code:  5056119111040
Part Number:  0-379-33
Brand:  Durite
Colour:  Pink
Voltage:  12V/24V DC
Amperage:  30A
Material:  Zinc Alloy/Thermoplastic

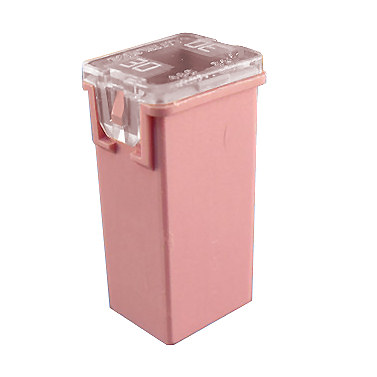

 Durite pink female JCASE type cartridge automotive fuse for vehicle fuse boxes.

  • Fuse Type: plug-in cartridge fuse.
  • Voltage Rating: 32Vdc Maximum.
  • Colour Coded: Pink.
  • Continuous Rating: 30A.
  • Blow Rating: 60A.
  • Pack Quantity: 1 piece.

Dimensions

  • Height: 27mm.
  • Body: 12mm by 10mm.

About The Pink 30A Plug-in JCASE Cartridge Fuse

 Durite replacement pink 30 Amps JCASE plug-in fuses are for vehicle fuse boxes and panels and are used to replace a blown fuse position or to add to a vehicle's breakdown kit.

 The ratings for 30A continuous use are based on a circuit constant load being always-on, and the 60A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent, and therefore the fuse is required to heat up before blowing.
