0-379-30 Green Female PAL Type Automotive Fuse 30A
Weight: 10 g
Model: 0-379-30
Bar Code: 5056119111026
Part Number: 0-379-30
Brand: Durite
Colour Green
Voltage 12V/24V DC
Amperage 30A

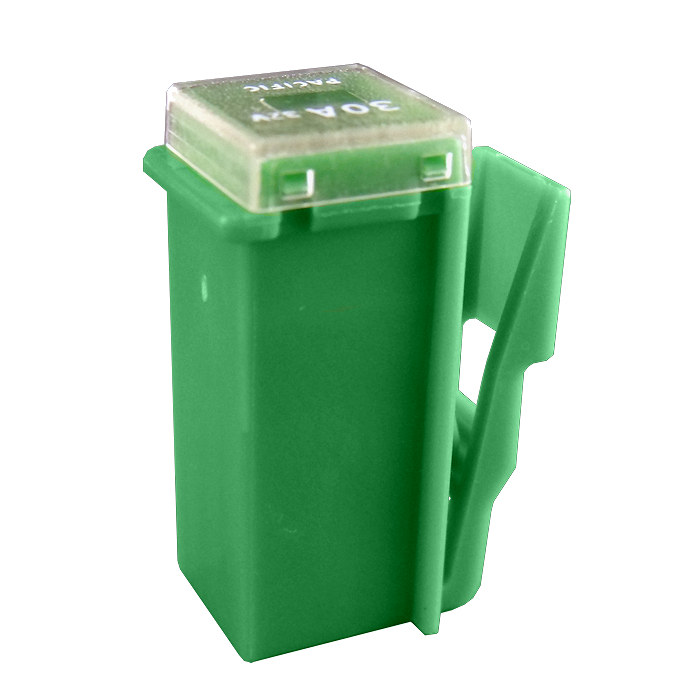

Durite green 30 Amps PAL type automotive cartridge fuse.
- Colour Coded: Green.
- Voltage Rating: 32Vdc Maximum.
- Continuous Rating 30A.
- Blow Rating 60A.
- Pack Quantity: 1 piece.
Body Dimensions Excluding Clip
- Depth: 12mm.
- Width: 12mm.
- Height: 31mm.
About The Green 30A Plug-in Cartridge Fuse
Durite replacement green 30 Amps plug-in fuses are for vehicle fuseboxes and panels and are used to replace a blown fuse position or to add to a vehicles breakdown kit.
The ratings for 30A continuous use is based on a circuit constant load being always-on, the 60A blow rating is based on the circuit load being intermittent.
Fuse Ratings
Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
