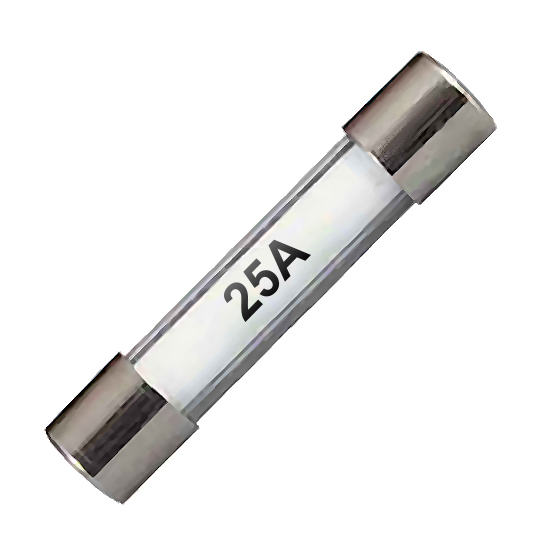

0-355-50 Pack of 10 29mm Standard Glass Fuses 25A

£3.19  Excl. VAT
  (£3.83 Inc. VAT)
RRP:  £3.58  Excl. VAT
Initial Savings:  £0.39
Earn 3 Loyalty Points
Available


Weight:  20 g





Model:  0-355-50
Bar Code:  5056119109375
Part Number:  0-355-50
Brand:  Durite
Colour:  Clear
Voltage:  12V/24V DC
Amperage:  25A
Material:  Glass/Nickel/Brass


 Durite 29mm standard 25 Amps glass fuse for automotive electrical surge protection.

  • Glass encased fuse element with nickel-plated brass end caps.
  • Continuous Rating: 25A.
  • Blow Rating: 50A.
  • Always check your equipment's manual before replacing fuses to determine which fuses you require.
  • Pack Quantity: 10 pieces.

Dimensions

  • Total Length: 29.0mm
  • Total Diameter: 6.0mm

About The 25A Standard 29mm Glass Fuse

 The Durite classic style glass fuse with 6.0mm diameter nickel-plated brass caps are historically used for surge protection, usually found mounted on vehicle PCB's and when used inline on automotive cables and vehicle wiring.

 The ratings for 25A continuous use is based on a circuit constant load being always-on, the 50A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
